INYE MACHINERY professional manufacturer of Heat Transfer Press Machine.
Inquiry

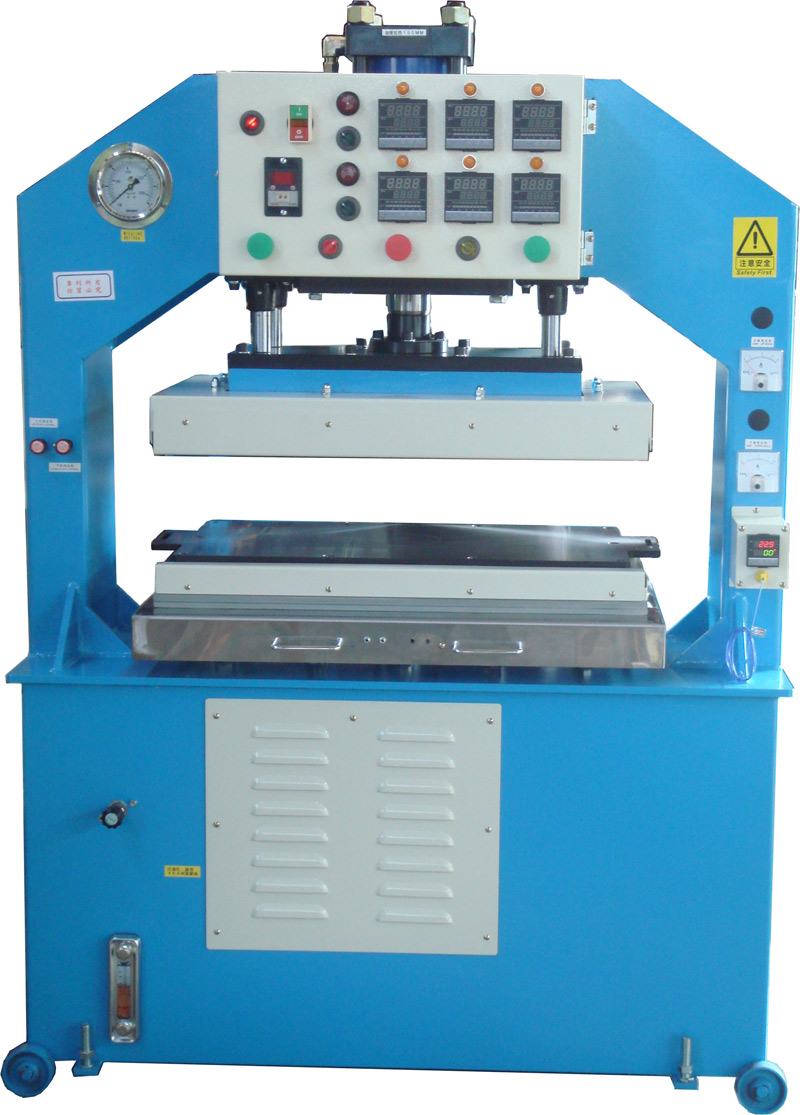

DO-4062-6-N



Feature

• This hydraulic hot press is used for hot-press and lamination on no-sewing material, flywire, TPU film and a variety of other materials.

• This machine provides upper and lower heating functions. The hot press disc, specially designed with aluminum alloyed, heats quickly, has even temperature distribution, and is rigid and durable.

• Six temperature control systems.

• Alarm of temperature difference.

• Digitalized temperature and timing controls: precise temperature auto control and digital timing auto control to ensure precise timing and guarantee stable quality.

Specification Table

Area of hot disc

Travel

Electric heat power

Max. output

40*62cm

200mm

8.1kw

17Ton

Diameter of cylinder

Max. distance between upper and lower molds

Pressure of pump

Motor

∮125mm

180mm

140kg/cm2

3HP

Temperature

Time

Machine dimensions

Weight

Max.250℃

1sec~99hr

127*73*170cm

805kg
