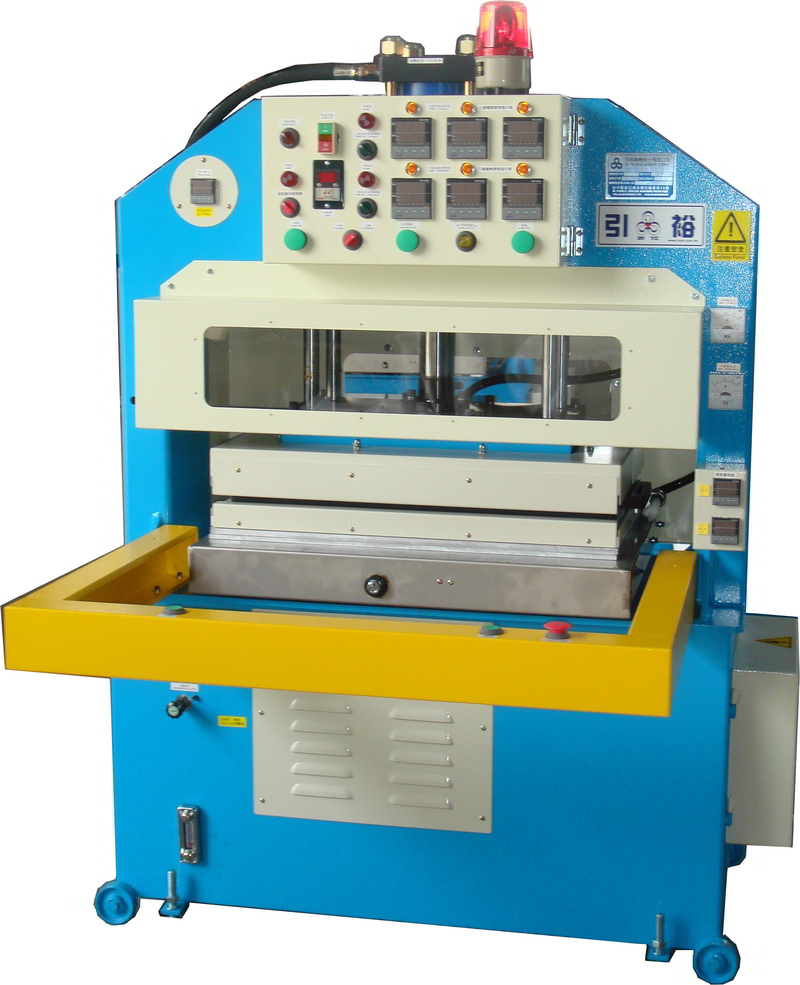

Heat Press Machine - This machine have two temperature device for examines the material temperature, when the temperature could not reach, the alarm sounded.
Inquiry
DOA-4072-66B-SD



Feature

• This hydraulic hot press is used for hot-press and lamination on no- sewing material, flywire, TPU film and a variety of other material

• The worktable of lower hot disc reciprocates automatically for easy operation and high work efficiency.

• This machine provides upper and lower heating functions. The hot press disc, specially designed with aluminum alloyed, heats quickly, has even temperature distribution, and is rigid and durable.

• Six temperature control systems include communicate function and three-area-heating to ensure even temperature distribution.

• Two temperature displays of shoe upper are provided, and with the communication wire and the converter to connect one computer or more computers. Through the instrument, the data can be read and accessed.

• Alarm of internal temperature is available.

• Alarm of temperature difference and alarm of electric heating wire broken are available.

• Digital pressure display enables a precise controlling.

• Digitalized temperature and timing controls: precise temperature auto control and digital timing auto control to ensure precise timing and guarantee stable quality.


Specification Table

Area of hot disc

Travel

Electric heat power

Max. output

40*72cm

200mm

10.8kw

24Ton

Diameter of cylinder

Max. distance between upper and lower molds

Pressure of pump

Motor

∮150mm

180mm

140kg/cm2

3HP

Temperature

Time

Machine dimensions

Weight

Max.250℃

1sec~99hr

134*127*175cm

850kg
